How to Achieve UGR<19 in Commercial LED Lighting Design: Optical Solutions for Retail & Hospitality Projects
Discover how ELYCEN lighting achieves UGR<19 glare control through advanced optical design, deep reflectors, and COB LED solutions for commercial lighting projects.
How to Achieve UGR<19 in Commercial LED Lighting Design?
Introduction
In commercial lighting projects, brightness is not the only factor that determines lighting quality.
For retail stores, hotels, offices, and showrooms, excessive glare can create visual discomfort and reduce the overall customer experience.
Therefore, professional lighting designers increasingly require UGR<19 LED lighting solutions to achieve comfortable and premium environments.
At ELYCEN, we combine light body constructure engineering, optics design, COB LED technology, and thermal management to develop commercial lighting products with excellent glare control.
1. What Is UGR and Why Does It Matter?
UGR (Unified Glare Rating) measures the discomfort caused by excessive brightness from lighting sources.
A lower UGR value means better visual comfort.
UGR Level | Application |
|---|---|
<16 | Precision environments |
<19 | Offices, premium retail, hospitality |
19-22 | General commercial spaces |
>25 | High glare environments |
For European commercial projects, UGR<19 has become an important lighting quality requirement, especially for:
- Fashion stores
- Luxury retail shops
- Hotels
- Restaurants
- Office spaces
2. Why Traditional LED Lighting Creates Glare Problems?
Many standard LED fixtures have several issues:
① Direct LED Exposure
LED chips are highly concentrated light sources.
Without proper optical control:
- Strong brightness contrast
- Eye discomfort
- Uncomfortable customer experience
② Shallow Reflector Design
A shallow reflector cannot effectively control the light angle.
Result:
- Light spills into unwanted directions
- Increased glare
③ Incorrect Beam Angle Selection
Different applications require different beam angles.
Example:
Application | Recommended Beam Angle |
|---|---|
Jewelry display | 15°-24° |
Fashion retail | 24°-36° |
General store | 36°-60° |
3. How ELYCEN Achieves UGR<19 Lighting Performance

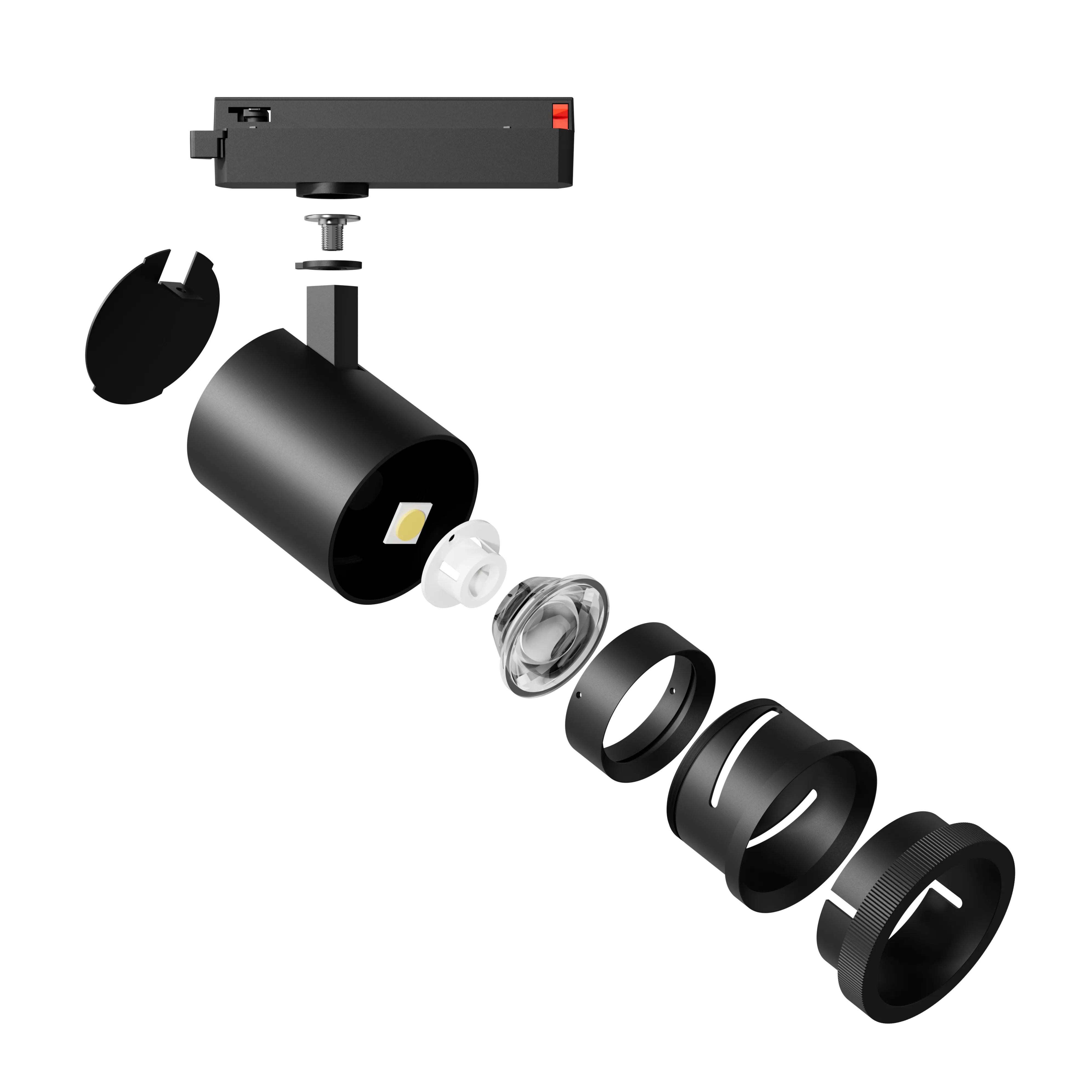

① Deep Anti-Glare Housing Structure Design
One of the key elements of ELYCEN track lights and downlights is the optimized optic structure.
Advantages:
✔ Reduce direct LED visibility
✔ Control light distribution
✔ Improve visual comfort
✔ Maintain high efficiency
Application:
- LED Track Light
- LED Downlight
- Surface Mounted Spotlight
② Professional Optical System Development
Different commercial spaces require different lighting effects.
ELYCEN provides customized optical solutions:
Narrow Beam
15°
Suitable for:
- Artwork
- Jewelry
- Display products
Medium Beam
24° / 36°
Suitable for:
- Fashion stores
- Retail lighting
Wide Beam
60°
Suitable for:
- General commercial illumination
③ COB LED Integration for Better Light Quality
Compared with traditional LED modules, COB technology provides:
- Better light uniformity
- Higher color consistency
- Compact optical design
Combined with precision reflectors, COB LED helps achieve:
- Comfortable brightness
- Clear product presentation
- Reduced glare
4. UGR<19 Solutions for Different Commercial Applications
Retail Store Lighting
Lighting Challenges:
- Highlight products
- Create premium atmosphere
- Avoid uncomfortable glare
ELY CEN Solution:
✔ Adjustable LED Track Light
✔ Different beam angles
✔ High CRI COB LED
✔ Anti-glare reflector
Hotel & Hospitality Lighting
Requirements:
- Comfortable atmosphere
- Elegant appearance
- Long operating hours
ELY CEN Solution:
✔ Recessed Downlight
✔ Surface Mounted Lighting
✔ Low glare optical design
Office Lighting
Requirements:
- Reduce eye fatigue
- Improve working environment
Recommended:
UGR<19 LED lighting system
5. Lens vs Reflector: Which Optical Design Is Better for UGR Control?
| Lens System | Reflector System |
|---|---|---|
Light Control | ★★★★★ | ★★★★★ |
Beam Accuracy | ★★★★★ | ★★★★ |
Anti-glare Performance | ★★★★ | ★★★★★ |
Premium Commercial Application | ★★★★★ | ★★★★★ |
For high-end retail and hospitality projects, a well-designed reflector system often provides excellent glare control and visual comfort.
6. Why Choose ELYCEN Commercial Lighting Solutions?
Unlike standard lighting suppliers, ELYCEN focuses on complete product development:
Optical Design
- Beam angle optimization
- Reflector development
- Anti-glare structure
Thermal Management
- Heat simulation analysis
- Aluminum material selection
- Long lifetime reliability
OEM/ODM Capability
Support:
✔ Customized appearance
✔ Customized optics
✔ Customized power
✔ Customized lighting solutions
FAQ
Q1: What does UGR<19 mean in LED lighting?
UGR<19 indicates that the lighting system provides low discomfort glare and improved visual comfort.
Q2: Which LED lights are suitable for UGR<19 applications?
LED track lights, downlights, and commercial spotlights with deep reflectors and optimized optics can achieve better glare control.
Q3: Why is UGR<19 important for retail lighting?
UGR<19 helps create comfortable shopping environments while improving product presentation and customer experience.
